99 3728 810 04 | binder
Jack, M12, 4 pole, screw connection, screw locking, straight, 99 3728 810 04
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
24.3593 € *
Available: 31 pcs.
Total Price:
24.36 € *
Price list
Quantity
Price per unit*
1 pcs.
24.3593 €
10 pcs.
21.4438 €
50 pcs.
19.9682 €
150 pcs.
19.1114 €
500 pcs.
18.1237 €
*incl. VAT plus shipping costs
Subject to prior sale

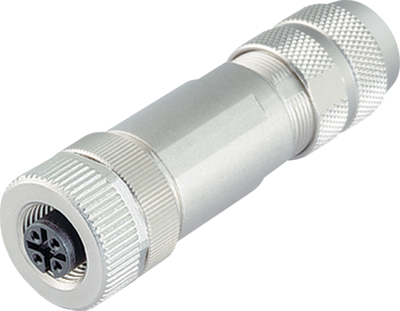

Female cable connector, 99-3728-810-04, Franz Binder
M12-D Female connector, poles 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | D | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
