99 3482 401 08 | binder

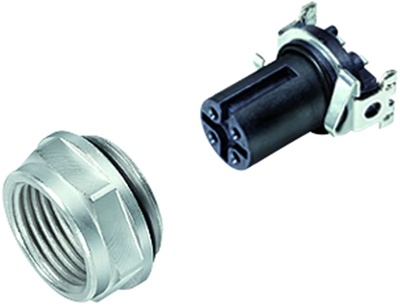

Panel socket, M12, 8 pole, SMD, screw locking, straight, 99 3482 401 08
Unit Price (€ / pc.)
15.6961 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.70 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6961 €
10 pcs.
14.5894 €
50 pcs.
13.5779 €
100 pcs.
12.6140 €
*incl. VAT plus shipping costs
Subject to prior sale
Female panel mount connector, 99 3482 401 08, binder
M12-A Female panel mount connector, Contacts: 8, shieldable, SMT, IP67.
Technical specifications
| Pin number | 8 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | SMD | |
| Product type | panel socket | |
| Coding | A | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
