99 3482 202 08 | binder
Panel socket, M12, 8 pole, THR, screw locking, angled, 99 3482 202 08
Unit Price (€ / pc.)
21.1106 € *
Available: 18 pcs.
Total Price:
21.11 € *
Price list
Quantity
Price per unit*
1 pcs.
21.1106 €
10 pcs.
18.5640 €
50 pcs.
17.3026 €
150 pcs.
16.5410 €
500 pcs.
15.7080 €
*incl. VAT plus shipping costs
Subject to prior sale

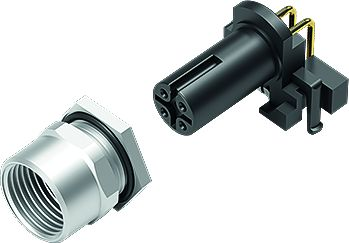

Female angled panel mount connector, 99-3482-202-08, Franz Binder
M12-A Female angled connector, poles 8, unshielded, THR, IP68, UL, for PCB assembly
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | THR | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | angled | |
| Product type | panel socket | |
| Coding | A | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
