99 3442 458 05 | binder

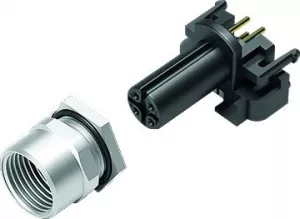

Panel socket, M12, 5 pole, THR, screw locking, angled, 99 3442 458 05
Unit Price (€ / pc.)
8.4847 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.48 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4847 €
10 pcs.
7.5684 €
20 pcs.
6.9377 €
100 pcs.
6.6283 €
200 pcs.
6.2951 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor-actuator connector, 99-3442-458-05, BINDER
M12-A Female panel mount connector, Contacts: 5, shieldable, THR, IP68, UL, for PCB assembly.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP68
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Coding | A | |
| Degree of protection (IP) | IP68 | |
| Assembly | panel mounting | |
| Contact connection | THR | |
| Pin number | 5 pole | |
| Version | panel socket | |
| Orientation | angled | |
| Thread size | M12 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
