99 3442 202 05 | binder
Panel socket, M12, 5 pole, THR, screw locking, angled, 99 3442 202 05
Unit Price (€ / pc.)
10.7695 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
10.77 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7695 €
10 pcs.
10.0198 €
50 pcs.
9.3177 €
100 pcs.
8.3895 €
*incl. VAT plus shipping costs
Subject to prior sale

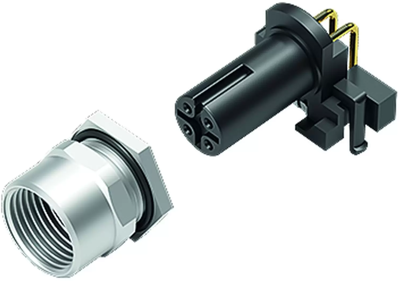

Panel mount connector, 99 3442 202 05, Franz Binder
M12-A Female angled panel mount connector, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Orientation | angled | |
| Contact connection | THR | |
| Pin number | 5 pole | |
| Product type | panel socket | |
| Degree of protection (IP) | IP68 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Assembly | panel mounting | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
