99 3441 202 05 | binder

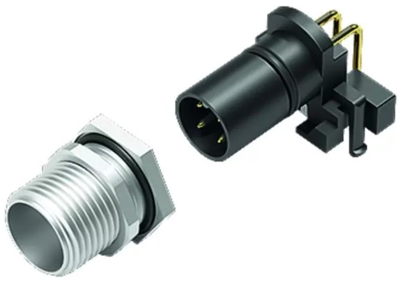

Panel plug, M12, 5 pole, THR, screw locking, angled, 99 3441 202 05
Unit Price (€ / pc.)
9.3415 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.34 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3415 €
10 pcs.
8.4133 €
50 pcs.
7.7350 €
100 pcs.
6.8068 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 99-3441-202-05, BINDER
M12-A Integrated plug, angled, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly.
Features
- Contact material: CuZn
- Degree of protection: IP68
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Coding | A | |
| Degree of protection (IP) | IP68 | |
| Assembly | PCB mounting | |
| Contact connection | THR | |
| Pin number | 5 pole | |
| Version | panel plug | |
| Orientation | angled | |
| Thread size | M12 |
Download
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
