99 3433 200 04 | binder
Panel plug, M12, 4 pole, solder connection, screw locking, straight, 99 3433 200 04
Unit Price (€ / pc.)
13.2923 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
13.29 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2923 €
10 pcs.
12.3641 €
50 pcs.
11.4954 €
100 pcs.
10.3411 €
*incl. VAT plus shipping costs
Subject to prior sale

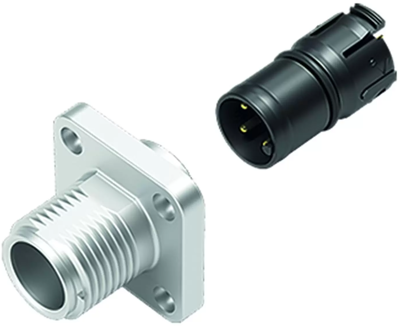

Square male panel mount connector, 99 3433 200 04, binder

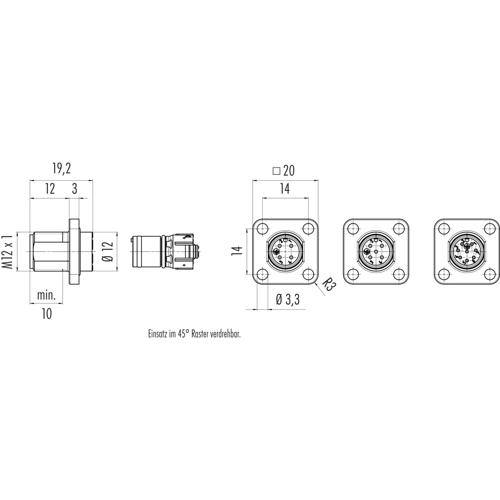

M12-A Square male panel mount connector, Contacts: 4, unshielded, solder, IP69, IP68, IP67, UL, positionable, lockable, Square housing 20 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel plug | |
| Coding | A | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67/IP68/IP69K | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
