99 3433 100 04 | binder

Panel plug, M12, 4 pole, strand connection, screw locking, straight, 99 3433 100 04

Order No.: 70P2984
EAN: 4099891669645
MPN:
99 3433 100 04
Series: 763

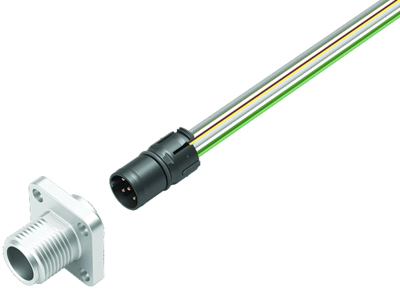

99 3433 100 04 binder Sensor-Actuator Connectors Image 1
99 3433 100 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.3383 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.34 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3383 €
10 pcs.
16.1245 €
50 pcs.
14.9940 €
100 pcs.
13.9468 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 99 3433 100 04, binder

M12-A Square male panel mount connector, Contacts: 4, unshielded, single wires, IP69, IP68, IP67, UL, Square, Square housing 20 mm.

Technical specifications
Filter Property Value
Pin number 4 pole
Degree of protection (IP) IP67/IP68/IP69K
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M12
contact surface gold-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
