99 3412 280 03 | binder
Panel socket, M8, 3 pole, solder pins, screw locking, straight, 99 3412 280 03
Unit Price (€ / pc.)
7.2114 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
7.21 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2114 €
10 pcs.
6.4974 €
50 pcs.
5.7239 €
100 pcs.
5.1408 €
*incl. VAT plus shipping costs
Subject to prior sale

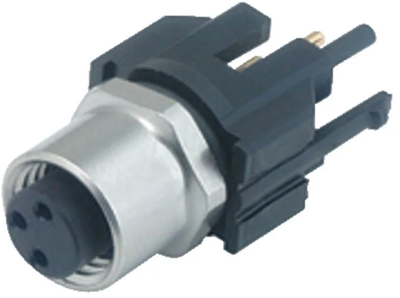

Female panel mount connector, 99 3412 280 03, binder
M8 Female panel mount connector, Contacts: 3, unshielded, THR, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Thread size | M8 | |
| Pin number | 3 pole | |
| Contact connection | solder pins | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
