99 3383 550 04 | binder
Plug, M8, 4 pole, IDC connection, screw locking, straight, 99 3383 550 04
Unit Price (€ / pc.)
15.0297 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.03 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0297 €
10 pcs.
13.9706 €
50 pcs.
12.9948 €
100 pcs.
12.0904 €
*incl. VAT plus shipping costs
Subject to prior sale

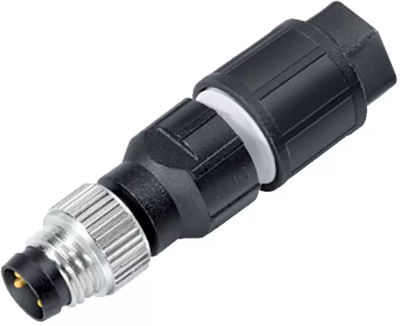

Male cable connector, 99 3383 550 04, binder
M8 Male cable connector, Contacts: 4, 2.5-5.0 mm, unshielded, cutting clamp, IP67, UL.
Technical specifications
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | IDC connection | |
| Product type | plug | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M8 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
