99 3383 00 04 | binder

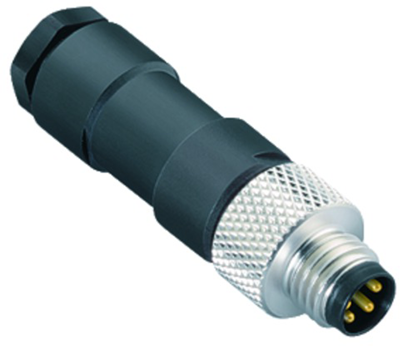

Plug, M8, 4 pole, solder connection, screw locking, straight, 99 3383 00 04
Unit Price (€ / pc.)
12.3284 € *
Available: 31 pcs.
Total Price:
12.33 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3284 €
10 pcs.
10.8528 €
50 pcs.
10.1031 €
150 pcs.
9.6628 €
500 pcs.
9.1630 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector for sensor, M 8, type Binder 768.
With solder terminals; Conductor-cross-sections: 0.25 mm².Cable outlet: 3.5 to 5.0 mm. Rated voltage: 60 V. Rated current (+40 °C): 4.0 A. Test surge voltage: 910 V.Contact resistance: max. 3.0 mohm. Insulation resistance: 10 Gohm. Housing degree of protection: IP 67. Degree of soiling: 3. Overvoltage category: II. Material: copper zinc. Finish: gold-plated. Housing: PBT (UL 94 V-0). Operating temperatures: - 40 to +85 °C.
Cable plug connectors with solder terminals.
Technical attributes (type, number of poles): 99-3383-00-04, 4-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| Thread size | M8 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | plug | |
| Pin number | 4 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
