99 2430 24 03 | binder
Jack, 2 pole + PE, screw connection, screw locking, angled, 99 2430 24 03
Unit Price (€ / pc.)
15.9222 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.92 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9222 €
10 pcs.
14.8036 €
50 pcs.
13.7683 €
100 pcs.
12.7925 €
*incl. VAT plus shipping costs
Subject to prior sale

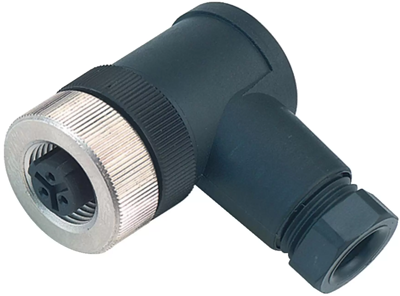

Female angled connector, 99 2430 24 03, binder
M12-US Female angled connector, Contacts: 2+PE, 4.0-6.0 mm, unshielded, screw clamp, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole + PE | |
| Degree of protection (IP) | IP67 | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Product type | jack | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
