99 1539 814 05 | binder
Plug, M12, 5 pole, clamp connection, screw locking, straight, 99 1539 814 05
Unit Price (€ / pc.)
26.0848 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
26.08 € *
Price list
Quantity
Price per unit*
1 pcs.
26.0848 €
10 pcs.
24.5140 €
25 pcs.
23.0265 €
50 pcs.
21.6461 €
*incl. VAT plus shipping costs
Subject to prior sale

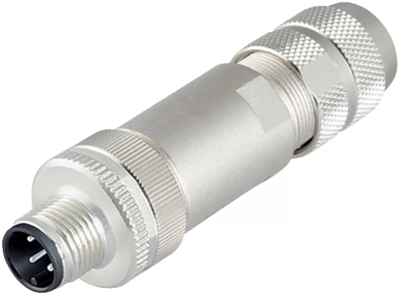

Male cable connector, 99 1539 814 05, binder
M12-A Male cable connector, Contacts: 5, 5.0-8.0 mm, shieldable, wire clamp, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | clamp connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Coding | A | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | plug | |
| Pin number | 5 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
