99 1538 812 05 | binder

Jack, M12, 5 pole, clamp connection, screw locking, straight, 99 1538 812 05

Order No.: 70P1074
EAN: 4099891675301
MPN:
99 1538 812 05
Series: 713

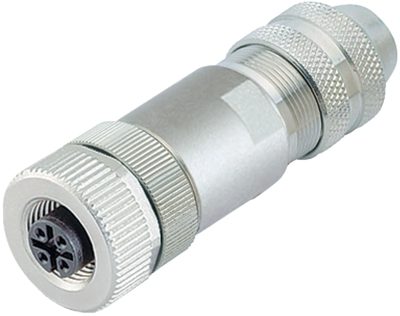

99 1538 812 05 binder Sensor-Actuator Connectors Image 1

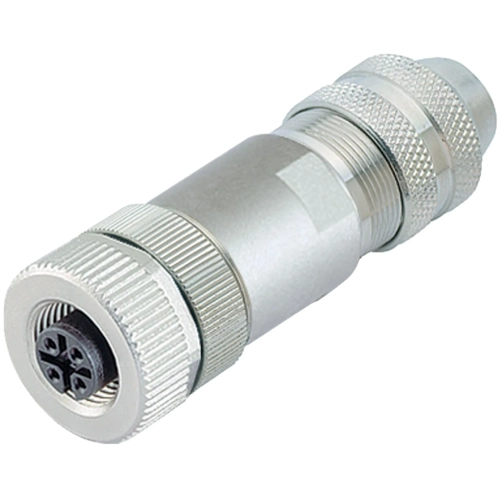

99 1538 812 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.4660 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
25.47 € *
Price list
Quantity
Price per unit*
1 pcs.
25.4660 €
10 pcs.
23.9428 €
25 pcs.
22.5148 €
50 pcs.
21.1582 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 1538 812 05, binder

M12-A Female cable connector, Contacts: 5, 6.0-8.0 mm, shieldable, wire clamp, IP67.

Technical specifications
Filter Property Value
Pin number 5 pole
Degree of protection (IP) IP67
Assembly cable assembly
Additional parts equipped
Coding A
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection clamp connection
Thread size M12
Product type jack
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
