99 1535 910 05 | binder

Plug, M12, 5 pole, clamp connection, screw locking, straight, 99 1535 910 05

Order No.: 70P1146
EAN: 4099891675790
MPN:
99 1535 910 05
Series: 715

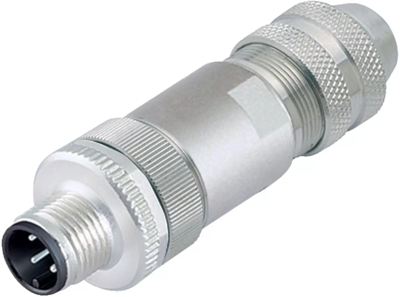

99 1535 910 05 binder Sensor-Actuator Connectors Image 1
99 1535 910 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.1435 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
28.14 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1435 €
10 pcs.
26.4418 €
25 pcs.
24.8591 €
50 pcs.
23.3716 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 1535 910 05, binder

M12-B Male cable connector, Contacts: 5, 6.5-8.5 mm, shieldable, wire clamp, IP67.

Technical specifications
Pin number 5 pole
Type of locking screw locking
Additional parts equipped
Contact connection clamp connection
Product type plug
Coding B
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
