99 1492 992 12 | binder

Jack, M12, 12 pole, solder connection, screw locking, straight, 99 1492 992 12

Order No.: 70P2385
EAN: 4099891677596
MPN:
99 1492 992 12
Series: 713

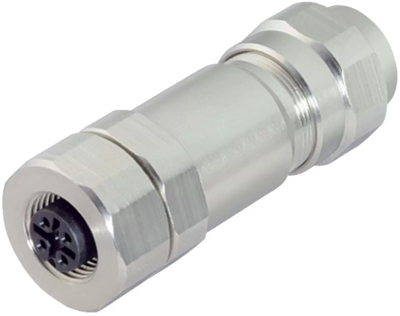

99 1492 992 12 binder Sensor-Actuator Connectors Image 1

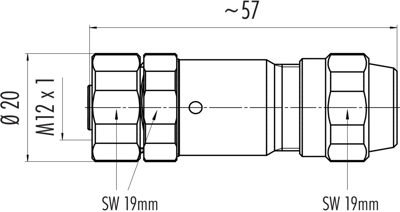

99 1492 992 12 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
69.3413 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
69.34 € *
Price list
Quantity
Price per unit*
1 pcs.
69.3413 €
5 pcs.
66.5567 €
10 pcs.
63.9030 €
25 pcs.
60.7138 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 1492 992 12, binder

M12-A Female cable connector, Contacts: 12, 5.5-8.6 mm, shieldable, solder, IP68/IP69K, UL, stainless steel.

Technical specifications
Filter Property Value
Pin number 12 pole
Degree of protection (IP) IP68/IP69K
Assembly cable assembly
Additional parts equipped
Coding A
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection solder connection
Thread size M12
Product type jack
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
