99 1491 914 12 | binder

Plug, M12, 12 pole, solder connection, screw locking, straight, 99 1491 914 12

Order No.: 70P2384
EAN: 4099891677589
MPN:
99 1491 914 12
Series: 713

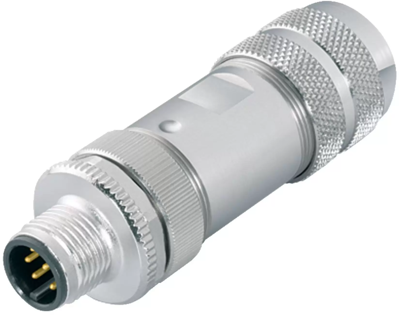

99 1491 914 12 binder Sensor-Actuator Connectors Image 1

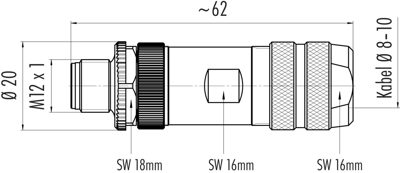

99 1491 914 12 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
32.3680 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
32.37 € *
Price list
Quantity
Price per unit*
1 pcs.
32.3680 €
10 pcs.
30.4164 €
25 pcs.
28.2982 €
50 pcs.
26.3228 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 1491 914 12, binder

M12-A Male cable connector, Contacts: 12, 8.0-10.0 mm, shieldable, solder, IP67.

Technical specifications
Filter Property Value
Thread size M12
Additional parts equipped
Pin number 12 pole
Orientation straight
Degree of protection (IP) IP67
Type of locking screw locking
Assembly cable assembly
Contact connection solder connection
contact surface gold-plated
Product type plug
Coding A
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
