99 1486 992 08 | binder

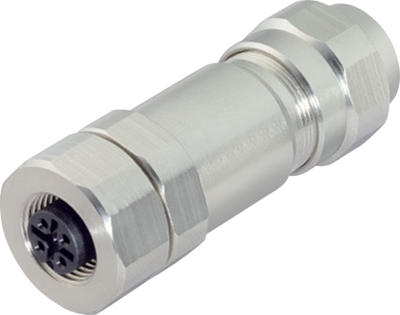

Jack, M12, 8 pole, screw connection, screw locking, straight, 99 1486 992 08

Order No.: 66P3719
EAN: 4099879107114
MPN:
99 1486 992 08
Series: 713
99 1486 992 08 binder Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
87.7030 € *
Available: 37 pcs.
Leadtime: On Request **
Total Price:
87.70 € *
Price list
Quantity
Price per unit*
1 pcs.
87.7030 €
5 pcs.
82.4432 €
15 pcs.
79.2778 €
50 pcs.
75.7792 €
150 pcs.
72.6257 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99-1486-992-08, Franz Binder

M12-A Female connector, poles 8, 5.5-8.6 mm, shieldable, screw clamp, IP68/IP69K, UL stainless steel

Technical specifications
Type of locking screw locking
contact surface gold-plated
Coding A
Degree of protection (IP) IP68/IP69K
Assembly cable assembly
Contact connection screw connection
Pin number 8 pole
Version jack
Orientation straight
Thread size M12
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
