99 1486 914 08 | binder

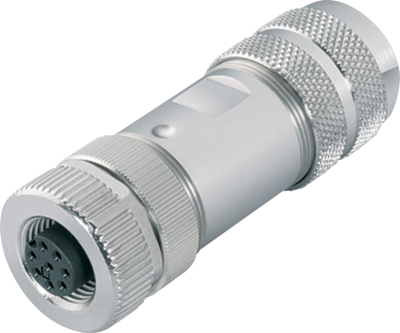

Jack, M12, 8 pole, screw connection, screw locking, straight, 99 1486 914 08
Unit Price (€ / pc.)
32.2133 € *
Available: 28 pcs.
Total Price:
32.21 € *
Price list
Quantity
Price per unit*
1 pcs.
32.2133 €
5 pcs.
29.9523 €
15 pcs.
26.9654 €
50 pcs.
24.7996 €
150 pcs.
21.8365 €
*incl. VAT plus shipping costs
Subject to prior sale
Female cable connector, 99-1486-914-08, Franz Binder
M12-A Female connector, poles 8, 8.0-10.0 mm, shieldable, screw clamp, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Thread size | M12 | |
| Type of locking | screw locking | |
| Degree of protection (IP) | IP67 | |
| Product type | jack | |
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Pin number | 8 pole | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
