99 1437 995 05 | binder
Plug, M12, 5 pole, screw connection, screw locking, straight, 99 1437 995 05
Unit Price (€ / pc.)
65.3548 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
65.35 € *
Price list
Quantity
Price per unit*
1 pcs.
65.3548 €
5 pcs.
62.7368 €
10 pcs.
60.2259 €
25 pcs.
57.2271 €
*incl. VAT plus shipping costs
Subject to prior sale

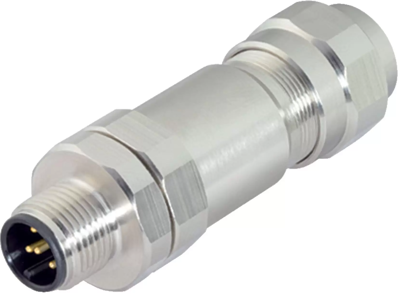

Male cable connector, 99 1437 995 05, binder
M12-B Male cable connector, Contacts: 5, 5.5-8.6 mm, shieldable, screw clamp, IP68/IP69K, UL.
Technical specifications
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | screw connection | |
| Product type | plug | |
| Coding | B | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Degree of protection (IP) | IP68/IP69K | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
