99 1437 935 05 | binder

Plug, M12, 5 pole, screw connection, screw locking, straight, 99 1437 935 05

Order No.: 66P3701
EAN: 4099879107060
MPN:
99 1437 935 05
Series: 715

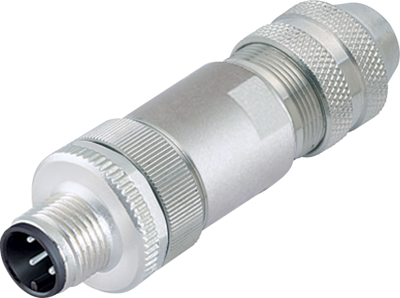

99 1437 935 05 binder Sensor-Actuator Connectors Image 1
99 1437 935 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
37.1042 € *
Available: 16 pcs.
Total Price:
37.10 € *
Price list
Quantity
Price per unit*
1 pcs.
37.1042 €
5 pcs.
34.8789 €
15 pcs.
33.5580 €
50 pcs.
32.0586 €
150 pcs.
30.7258 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99-1437-935-05, Franz Binder

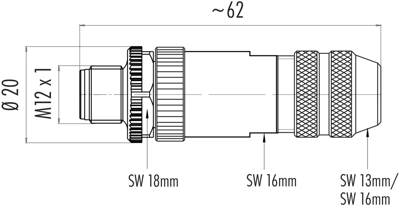

M12-B Male connector, poles 5, 8.0-10.0 mm, shieldable, screw clamp, IP67, UL

Technical specifications
Pin number 5 pole
Type of locking screw locking
Contact connection screw connection
Product type plug
Coding B
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
