99 1437 810 05 | binder

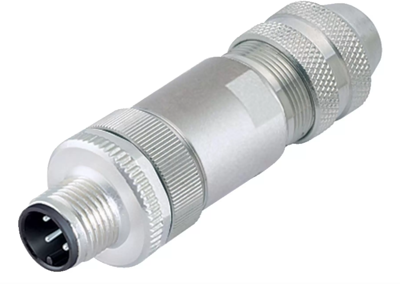

Plug, M12, 5 pole, screw connection, screw locking, straight, 99 1437 810 05
Unit Price (€ / pc.)
19.7421 € *
Available: 40 pcs.
Total Price:
19.74 € *
Price list
Quantity
Price per unit*
1 pcs.
19.7421 €
10 pcs.
18.5640 €
50 pcs.
17.4454 €
100 pcs.
16.3982 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug cable connector, 99 1437 810 05, Franz Binder
M12-B Male cable connector, Contacts: 5, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Coding | B | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | plug | |
| Pin number | 5 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
