99 1436 995 05 | binder
Jack, M12, 5 pole, screw connection, screw locking, straight, 99 1436 995 05
Unit Price (€ / pc.)
66.6519 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
66.65 € *
Price list
Quantity
Price per unit*
1 pcs.
66.6519 €
5 pcs.
63.9744 €
10 pcs.
61.4278 €
25 pcs.
58.3576 €
*incl. VAT plus shipping costs
Subject to prior sale

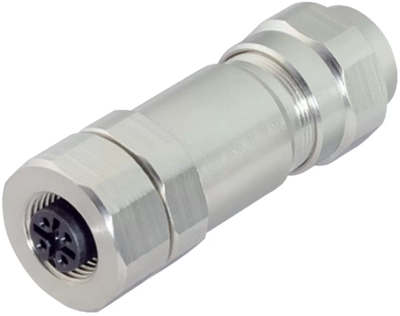

Female cable connector, 99 1436 995 05, binder
M12-B Female cable connector, Contacts: 5, 5.5-8.6 mm, shieldable, screw clamp, IP68/IP69K, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | jack | |
| Coding | B | |
| Assembly | cable assembly | |
| Type of locking | screw locking | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
