99 1433 824 04 | binder

Angle plug, M12, 4 pole, crimp connection, screw locking, angled, 99 1433 824 04

Order No.: 70P1056
EAN: 4099891675127
MPN:
99 1433 824 04
Series: 713

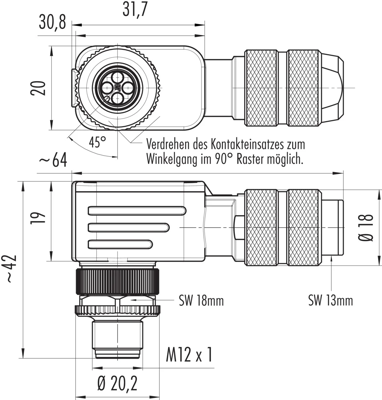

99 1433 824 04 binder Sensor-Actuator Connectors Image 1

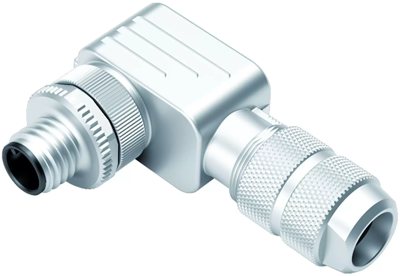

99 1433 824 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.3474 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.35 € *
Price list
Quantity
Price per unit*
1 pcs.
24.3474 €
10 pcs.
22.8956 €
50 pcs.
21.5152 €
100 pcs.
20.2300 €
*incl. VAT plus shipping costs
Subject to prior sale

Male angled connector, 99 1433 824 04, binder

M12-A Male angled connector, Contacts: 4, 5.0-8.0 mm, shieldable, crimping, IP67, UL.

Technical specifications
Version angle plug
Pin number 4 pole
Thread size M12
Coding A
Type of locking screw locking
Orientation angled
Contact connection crimp connection
contact surface gold-plated
Additional parts equipped
Assembly cable assembly
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
