99 1433 810 04 | binder
Plug, M12, 4 pole, crimp connection, screw locking, angled, 99 1433 810 04
Unit Price (€ / pc.)
20.5751 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.58 € *
Price list
Quantity
Price per unit*
1 pcs.
20.5751 €
10 pcs.
19.3375 €
50 pcs.
18.1832 €
100 pcs.
17.1003 €
*incl. VAT plus shipping costs
Subject to prior sale

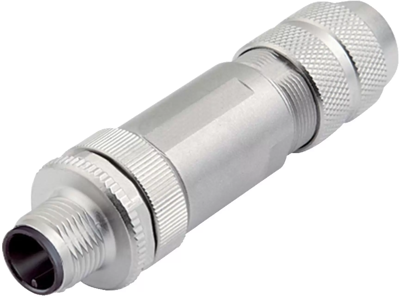

Male cable connector, 99 1433 810 04, binder
M12-B Male cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, crimping, IP67, UL.
Technical specifications
| Version | plug | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | B | |
| Type of locking | screw locking | |
| Orientation | angled | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Additional parts | unequipped | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
