99 1432 824 04 | binder

Jack, M12, 4 pole, screw connection, screw locking, angled, 99 1432 824 04

Order No.: 70P1054
EAN: 4099891675103
MPN:
99 1432 824 04
Series: 713
99 1432 824 04 binder Sensor-Actuator Connectors Image 1
99 1432 824 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.3470 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
25.35 € *
Price list
Quantity
Price per unit*
1 pcs.
25.3470 €
10 pcs.
23.8238 €
25 pcs.
22.3958 €
50 pcs.
21.0511 €
*incl. VAT plus shipping costs
Subject to prior sale

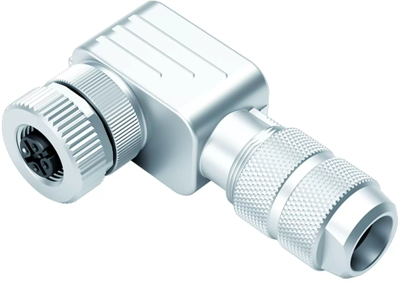

Female angled connector, 99 1432 824 04, binder

M12-A Female angled connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL.

Technical specifications
Filter Property Value
Product type jack
Degree of protection (IP) IP67
Orientation angled
Pin number 4 pole
Coding A
Additional parts equipped
Contact connection screw connection
contact surface gold-plated
Assembly cable assembly
Thread size M12
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
