99 1430 995 04 | binder

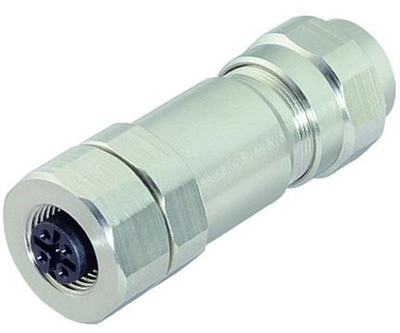

Jack, M12, 4 pole, screw connection, screw locking, straight, 99 1430 995 04
Unit Price (€ / pc.)
85.8942 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
85.89 € *
Price list
Quantity
Price per unit*
1 pcs.
85.8942 €
5 pcs.
80.7415 €
15 pcs.
77.6594 €
50 pcs.
74.2084 €
150 pcs.
71.1263 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 99-1430-995-04, BINDER
M12-B Female cable connector, Contacts: 4, 5.5-8.6 mm, shieldable, screw clamp, IP68/IP69K, UL, stainless steel.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 2
- Overvoltage category: II
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | jack | |
| Coding | B | |
| Assembly | cable assembly | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
