99 1429 995 04 | binder

Plug, M12, 4 pole, screw connection, screw locking, straight, 99 1429 995 04

Order No.: 66P3645
EAN: 4099879106704
MPN:
99 1429 995 04
Series: 715

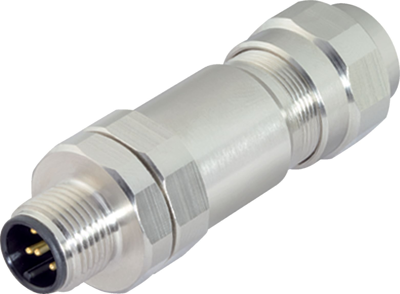

99 1429 995 04 binder Sensor-Actuator Connectors Image 1
99 1429 995 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
77.4452 € *
Available: 4 pcs.
Total Price:
77.45 € *
Price list
Quantity
Price per unit*
1 pcs.
77.4452 €
5 pcs.
72.7923 €
15 pcs.
70.0196 €
50 pcs.
66.9137 €
150 pcs.
64.1291 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99-1429-995-04, Franz Binder

M12-B Male connector, poles 4, 5.5-8.6 mm, shieldable, screw clamp, IP68/IP69K, UL

Technical specifications
Pin number 4 pole
Type of locking screw locking
Contact connection screw connection
Product type plug
Coding B
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP68/IP69K
Thread size M12
contact surface gold-plated
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
