99 1429 810 04 | binder

Plug, M12, 4 pole, screw connection, screw locking, straight, 99 1429 810 04

Order No.: 66P3636
EAN: 4099891673925
MPN:
99 1429 810 04
Series: 715

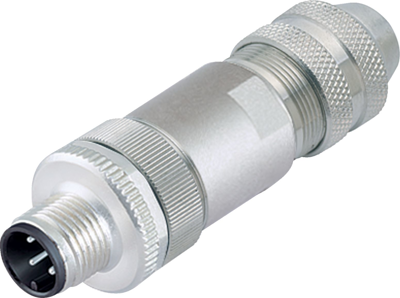

99 1429 810 04 binder Sensor-Actuator Connectors Image 1
99 1429 810 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.2546 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.25 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2546 €
10 pcs.
16.9813 €
50 pcs.
15.7913 €
100 pcs.
14.6846 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99-1429-810-04, Franz Binder

M12-B Male connector, poles 4, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL

Technical specifications
Pin number 4 pole
Type of locking screw locking
Contact connection screw connection
Product type plug
Coding B
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
