99 0689 32 04 | binder

Plug, M12, 3 pole + PE, screw connection, screw locking, straight, 99 0689 32 04

Order No.: 70P3098
EAN: 4099891677886
MPN:
99 0689 32 04
Series: 814

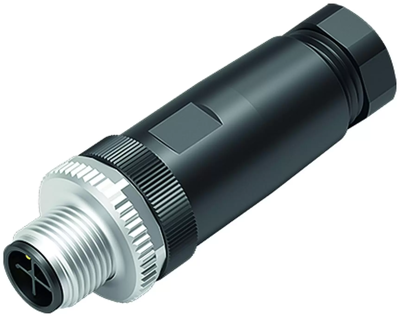

99 0689 32 04 binder Sensor-Actuator Connectors Image 1
99 0689 32 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.3268 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.33 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3268 €
10 pcs.
15.1963 €
50 pcs.
14.1253 €
100 pcs.
13.1495 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, 99 0689 32 04, binder

M12-S plug, Contacts: 3+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, VDE.

Technical specifications
Pin number 3 pole + PE
Type of locking screw locking
Additional parts equipped
Contact connection screw connection
Product type plug
Coding S
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
