99 0642 20 05 | binder

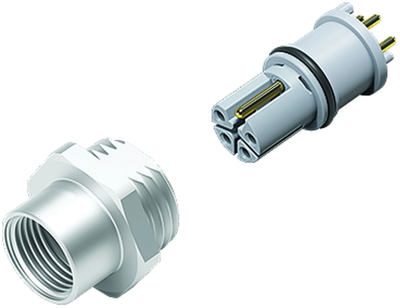

Panel socket, M12, 4 pole + FE, THR, screw locking, straight, 99 0642 20 05
Unit Price (€ / pc.)
18.6949 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.69 € *
Price list
Quantity
Price per unit*
1 pcs.
18.6949 €
10 pcs.
17.5644 €
50 pcs.
16.5172 €
100 pcs.
15.5176 €
*incl. VAT plus shipping costs
Subject to prior sale
Female panel mount connector, 99 0642 20 05, binder
M12-L Female panel mount connector, Contacts: 5, unshielded, THR, IP67, M16x1.5.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole + FE | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | THR | |
| Product type | panel socket | |
| Coding | L | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
