99 0641 10 05 | binder
Panel plug, M12, 4 pole + FE, THR, screw locking, straight, 99 0641 10 05
Unit Price (€ / pc.)
20.2776 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
20.28 € *
Price list
Quantity
Price per unit*
1 pcs.
20.2776 €
10 pcs.
19.0638 €
50 pcs.
17.9214 €
100 pcs.
16.8504 €
*incl. VAT plus shipping costs
Subject to prior sale

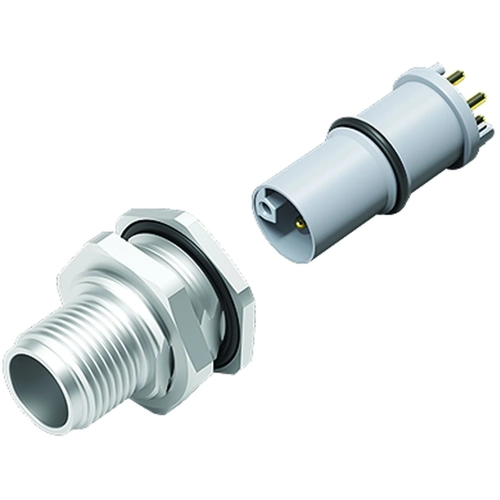

Male panel mount connector, 99 0641 10 05, binder

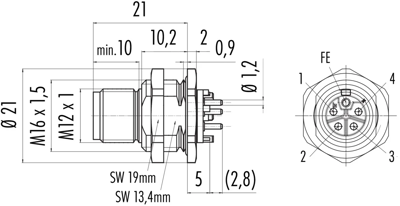

M12-L Male panel mount connector, Contacts: 5, unshielded, THR, IP67, M16x1.5, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | L | |
| Orientation | straight | |
| Contact connection | THR | |
| Pin number | 4 pole + FE | |
| Product type | panel plug | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
