99 0640 37 05 | binder

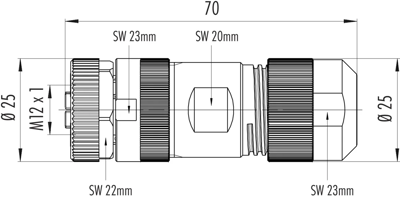

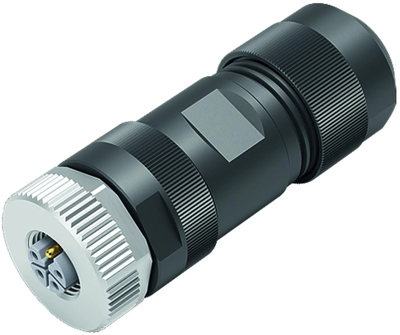

Jack, M12, 4 pole + FE, screw connection, screw locking, straight, 99 0640 37 05
Unit Price (€ / pc.)
   34.4981 €  *
   Standard delivery time from the manufacturer is: 1 Week
 Total Price:
  34.50 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 34.4981 €
 10 pcs.
 32.4275 €
 25 pcs.
 30.1665 €
 50 pcs.
 28.0602 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Female cable connector, 99 0640 37 05, binder
M12-L Female cable connector, Contacts: 4+FE, 8.0-13.0 mm, unshielded, screw clamp, IP67, M12x1.0, UL 2237 in preparation, with PE connection.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Coding | L | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | jack | |
| Pin number | 4 pole + FE | |
| Type of locking | screw locking |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
