99 0640 29 05 | binder

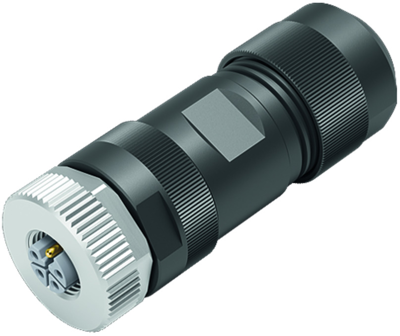

Jack, M12, 4 pole + PE, screw connection, screw locking, straight, 99 0640 29 05
Unit Price (€ / pc.)
   26.6679 €  *
   Available: 44 pcs.
   Available in 5 Days: 10 pcs. - if ordered today
 Total Price:
  26.67 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 26.6679 €
 10 pcs.
 23.4787 €
 50 pcs.
 21.8841 €
 150 pcs.
 20.9202 €
 500 pcs.
 19.8492 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Cable connector, 99 0640 29 05, binder
Female cable connector, contacts: 4+FE, 8.0-13.0 mm, unshielded, screw clamp, IP67, UL, M12 x 1.0.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Coding | L | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | jack | |
| Pin number | 4 pole + PE | |
| Type of locking | screw locking |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
