99 0639 370 05 | binder
Plug, M12, 4 pole + FE, screw connection, screw locking, angled, 99 0639 370 05
Unit Price (€ / pc.)
40.8408 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
40.84 € *
Price list
Quantity
Price per unit*
1 pcs.
40.8408 €
10 pcs.
38.3894 €
25 pcs.
35.7119 €
50 pcs.
33.2129 €
*incl. VAT plus shipping costs
Subject to prior sale

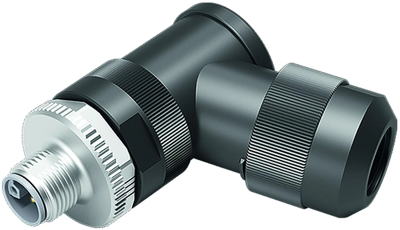

Male angled connector, 99 0639 370 05, binder

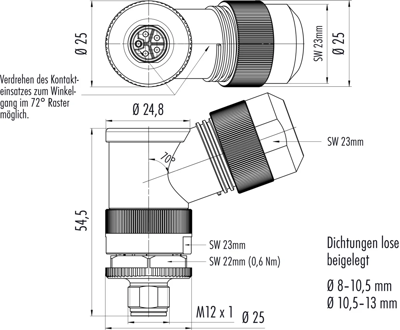

M12-L Male angled connector, Contacts: 4+FE, 8.0-13.0 mm, unshielded, screw clamp, IP67, M12x1.0, for the power supply, UL 2237 in preparation, with PE connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Coding | L | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Product type | plug | |
| Pin number | 4 pole + FE | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
