99 0639 37 05 | binder
Plug, M12, 4 pole + FE, screw connection, screw locking, straight, 99 0639 37 05
Unit Price (€ / pc.)
   40.7813 €  *
   Standard delivery time from the manufacturer is: 5 Weeks
 Total Price:
  40.78 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 40.7813 €
 10 pcs.
 38.3299 €
 25 pcs.
 35.6524 €
 50 pcs.
 33.1534 €
  *incl. VAT plus shipping costs
  Subject to prior sale

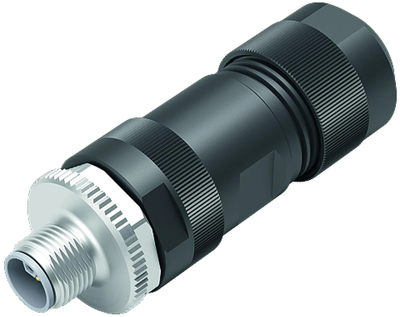

 Male cable connector, 99 0639 37 05, binder

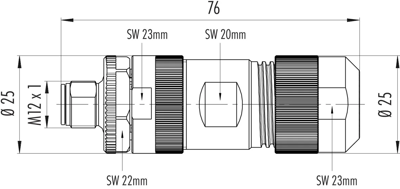

M12-L Male cable connector, Contacts: 4+FE, 8.0-13.0 mm, unshielded, screw clamp, IP67, M12x1.0, UL 2237 in preparation, with PE connection.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Coding | L | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | plug | |
| Pin number | 4 pole + FE | |
| Type of locking | screw locking |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
