99 0630 19 04 | binder

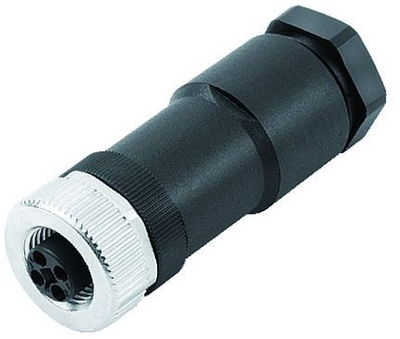

Jack, M12, 4 pole, screw connection, screw locking, straight, 99 0630 19 04
Unit Price (€ / pc.)
19.9444 € *
Available: 41 pcs.
Total Price:
19.94 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9444 €
10 pcs.
17.5525 €
50 pcs.
16.3506 €
150 pcs.
15.6366 €
500 pcs.
14.8393 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 99-0630-19-04, BINDER
M12-T Female cable connector, Contacts: 4, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Product type | jack | |
| Thread size | M12 | |
| Type of locking | screw locking |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
