99 0629 19 04 | binder

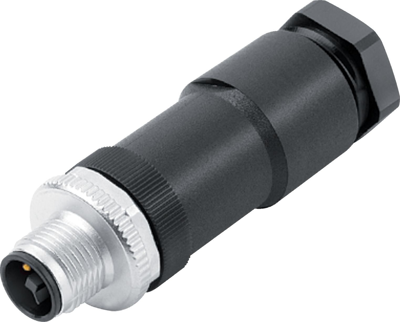

Plug, M12, 4 pole, screw connection, Screw locking, straight, 99 0629 19 04
Images may differ
Unit Price (€ / pc.)
18.1356 € *
Available: 13 pcs.
Leadtime: 4 Weeks **
Total Price:
18.14 € *
Quantity
Price per unit*
1 pcs.
18.1356 €
10 pcs.
15.9579 €
50 pcs.
14.8631 €
150 pcs.
14.2205 €
500 pcs.
13.4946 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Male cable connector, 99-0629-19-04, Franz Binder
M12-T Male connector, poles 4, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE
Technical specifications
| Version | plug | |
| Thread size | M12 | |
| Coding | T | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
Accessory
Order No.:
66P0062
Manufacturer SKU:
08 2424 010 000
Available: 38 pcs.
Leadtime: 6 Weeks **
5.00 € per pc. *
*incl. VAT plus shipping costs
1 pcs.
4.9980 €
10 pcs.
4.4030 €
100 pcs.
3.8556 €
250 pcs.
3.7128 €
1000 pcs.
3.4748 €
Order No.:
67F5940
Manufacturer SKU:
07 0079 000
Available: 0 pcs.
Leadtime: 4 Weeks **
298.69 € per pc. *
