99 0530 24 04 | binder
Jack, M12, 4 pole, crimp connection, screw locking, angled, 99 0530 24 04
Unit Price (€ / pc.)
12.1856 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
12.19 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1856 €
10 pcs.
11.3288 €
50 pcs.
10.5315 €
100 pcs.
9.4843 €
*incl. VAT plus shipping costs
Subject to prior sale

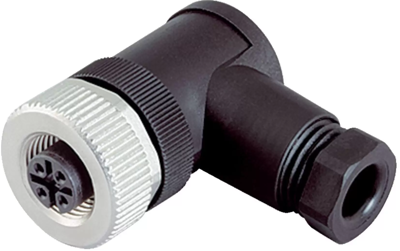

Female angled connector, 99 0530 24 04, binder
M12-A Female angled connector, Contacts: 4, 4.0-6.0 mm, unshielded, crimping, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | angled | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Additional parts | unequipped | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
