99 0529 12 04 | binder

Plug, M12, 4 pole, crimp connection, screw locking, straight, 99 0529 12 04

Order No.: 70P1041
EAN: 4099891674977
MPN:
99 0529 12 04
Series: 713

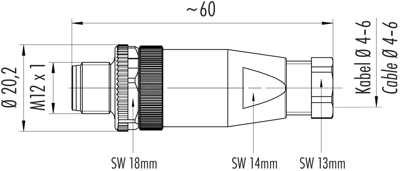

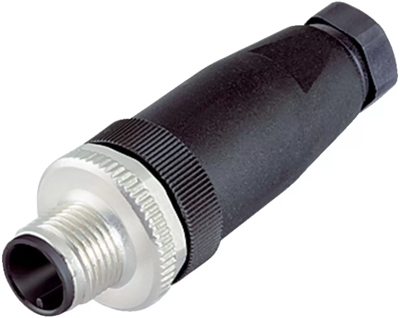

99 0529 12 04 binder Sensor-Actuator Connectors Image 1
99 0529 12 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.6386 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.64 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6386 €
10 pcs.
9.8889 €
50 pcs.
9.1987 €
100 pcs.
8.2824 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 0529 12 04, binder

M12-A Male cable connector, Contacts: 4, 6.0-8.0 mm, unshielded, crimping, IP67, UL.

Technical specifications
Version plug
Pin number 4 pole
Thread size M12
Coding A
Type of locking screw locking
Orientation straight
Contact connection crimp connection
contact surface gold-plated
Additional parts unequipped
Assembly cable assembly
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
