99 0527 12 04 | binder
Plug, M12, 4 pole, IDC connection, screw locking, straight, 99 0527 12 04
Unit Price (€ / pc.)
14.2324 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.23 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2324 €
10 pcs.
13.2566 €
50 pcs.
12.3165 €
100 pcs.
11.0908 €
*incl. VAT plus shipping costs
Subject to prior sale

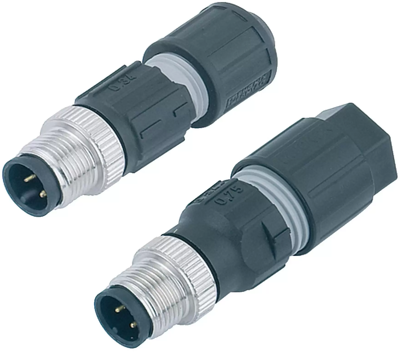

Male cable connector, 99 0527 12 04, binder

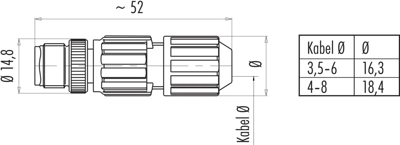

M12-A Male cable connector, Contacts: 4, 4.0-8.0 mm, unshielded, cutting clamp, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | IDC connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | plug | |
| Coding | A | |
| Assembly | cable assembly | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
