99 0491 12 12 | binder

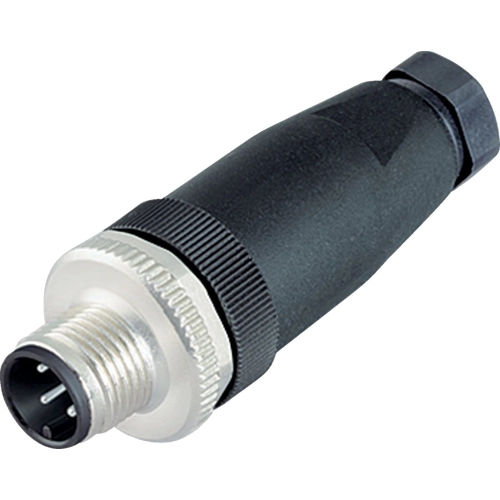

Plug, M12, 12 pole, solder connection, screw locking, straight, 99 0491 12 12
Unit Price (€ / pc.)
27.8579 € *
Available: 59 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
27.86 € *
Price list
Quantity
Price per unit*
1 pcs.
27.8579 €
10 pcs.
24.5259 €
50 pcs.
22.8361 €
150 pcs.
21.8365 €
500 pcs.
20.7298 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 99-0491-12-12, Franz Binder
M12-A Male connector, poles 12, 6.0-8.0 mm, unshielded, solder, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Type of locking | screw locking | |
| Contact connection | solder connection | |
| Product type | plug | |
| Coding | A | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
