99 0487 52 08 | binder

Plug, M12, 8 pole, screw connection, screw locking, angled, 99 0487 52 08

Order No.: 70P1033
EAN: 4099891674892
MPN:
99 0487 52 08
Series: 713
99 0487 52 08 binder Sensor-Actuator Connectors Image 1
99 0487 52 08 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.8353 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
24.84 € *
Price list
Quantity
Price per unit*
1 pcs.
24.8353 €
10 pcs.
23.3478 €
50 pcs.
21.9555 €
100 pcs.
20.6227 €
*incl. VAT plus shipping costs
Subject to prior sale

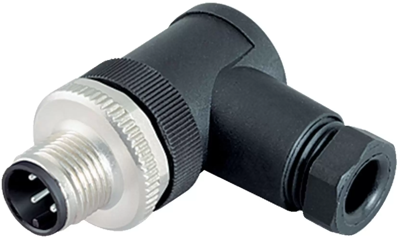

Male angled connector, 99 0487 52 08, binder

M12-A Male angled connector, Contacts: 8, 6.0-8.0 mm, unshielded, screw clamp, IP67.

Technical specifications
Filter Property Value
Coding A
Pin number 8 pole
Assembly cable assembly
Orientation angled
Additional parts equipped
Degree of protection (IP) IP67
Contact connection screw connection
contact surface gold-plated
Type of locking screw locking
Product type plug
Thread size M12
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
