99 0487 29 08 | binder
Plug, M12, 8 pole, screw connection, screw locking, straight, 99 0487 29 08
Unit Price (€ / pc.)
26.1800 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
26.18 € *
Price list
Quantity
Price per unit*
1 pcs.
26.1800 €
10 pcs.
24.6211 €
25 pcs.
23.1455 €
50 pcs.
21.7413 €
*incl. VAT plus shipping costs
**Subject to prior sale

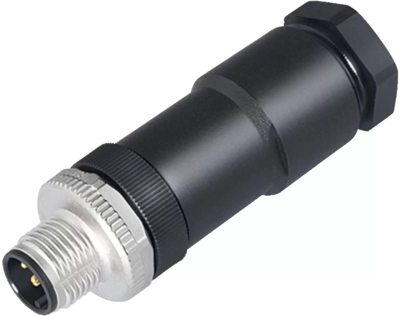

Male cable connector, 99 0487 29 08, binder
M12-A Male cable connector, Contacts: 8, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, PG 11.
Technical specifications
| Version | plug | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
