99 0486 12 08 | binder

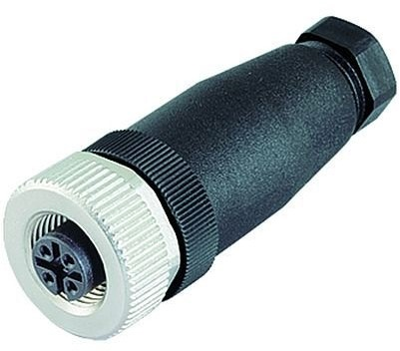

Jack, M12, 8 pole, screw connection, screw locking, straight, 99 0486 12 08
Unit Price (€ / pc.)
32.8797 € *
Available: 233 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
32.88 € *
Price list
Quantity
Price per unit*
1 pcs.
32.8797 €
5 pcs.
28.9408 €
10 pcs.
26.9654 €
25 pcs.
25.7873 €
50 pcs.
24.4664 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 99-0486-12-08, BINDER
M12-A Female cable connector, Contacts: 8, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, PG 9.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Product type | jack | |
| Contact connection | screw connection | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Pin number | 8 pole | |
| Type of locking | screw locking | |
| Thread size | M12 | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
