99 0437 44 05 | binder

Plug, M12, 5 pole, screw connection, screw locking, angled, 99 0437 44 05

Order No.: 70P1026
EAN: 4099891674823
MPN:
99 0437 44 05
Series: 713

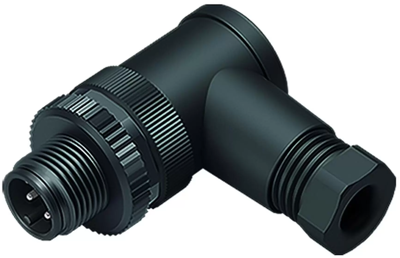

99 0437 44 05 binder Sensor-Actuator Connectors Image 1

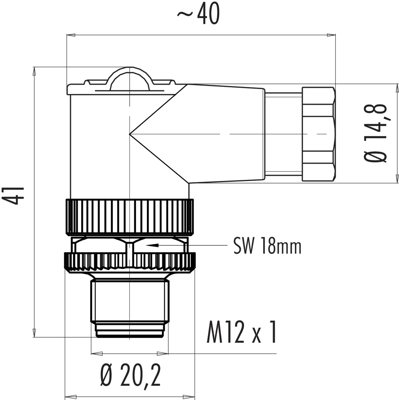

99 0437 44 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.3276 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.33 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3276 €
10 pcs.
13.3399 €
50 pcs.
12.3998 €
100 pcs.
11.5311 €
*incl. VAT plus shipping costs
Subject to prior sale

Male angled connector, 99 0437 44 05, binder

M12-A Male angled connector, Contacts: 5, 4.0-6.0 mm, unshielded, screw clamp, IP67, UL.

Technical specifications
Filter Property Value
Pin number 5 pole
Degree of protection (IP) IP67
Assembly cable assembly
Orientation angled
Coding A
Product type plug
Additional parts equipped
Type of locking screw locking
Contact connection screw connection
Thread size M12
contact surface CuSnZn
Logistics
Property Value
Country of origin HU
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
