99 0437 287 05 | binder

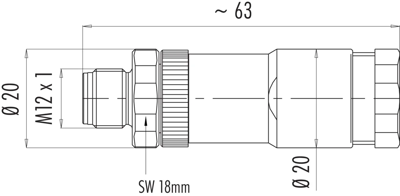

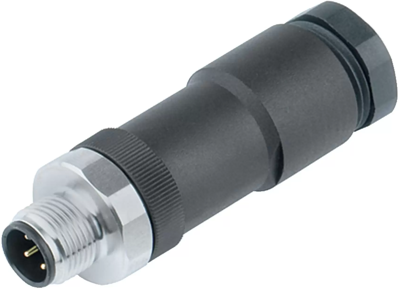

Plug, M12, 5 pole, screw connection, screw locking, straight, 99 0437 287 05
Unit Price (€ / pc.)
22.4315 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.43 € *
Price list
Quantity
Price per unit*
1 pcs.
22.4315 €
10 pcs.
21.0868 €
50 pcs.
19.8135 €
100 pcs.
18.6235 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable duo connector, 99 0437 287 05, binder
M12-A Male cable duo connector, Contacts: 5, 2 x 2: 1.0-3.0 mm / Ø 4.0-5.0 mm, unshielded, screw clamp, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | screw connection | |
| Product type | plug | |
| Coding | A | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
