99 0437 145 05 | binder

Plug, M12, 5 pole, screw connection, screw locking, angled, 99 0437 145 05

Order No.: 70P1123
EAN: 4099891675561
MPN:
99 0437 145 05
Series: 715
99 0437 145 05 binder Sensor-Actuator Connectors Image 1
99 0437 145 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.2054 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.21 € *
Price list
Quantity
Price per unit*
1 pcs.
22.2054 €
10 pcs.
20.8607 €
50 pcs.
19.6231 €
100 pcs.
18.4331 €
*incl. VAT plus shipping costs
Subject to prior sale

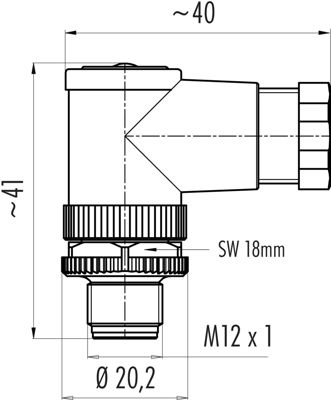

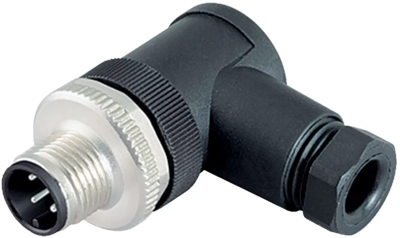

Male angled connector, 99 0437 145 05, binder

M12-B Male angled connector, Contacts: 5, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL.

Technical specifications
Pin number 5 pole
Degree of protection (IP) IP67
Assembly cable assembly
Orientation angled
Coding B
Product type plug
Additional parts equipped
Type of locking screw locking
Contact connection screw connection
Thread size M12
Logistics
Country of origin HU
Customs tariff number 85369010
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
