99 0437 142 05 | binder

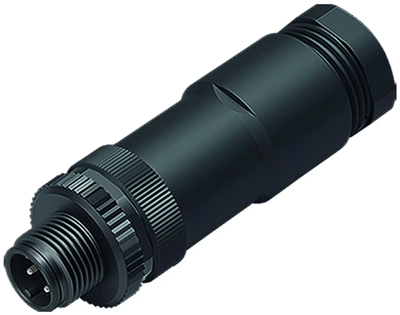

Plug, M12, 5 pole, screw connection, screw locking, straight, 99 0437 142 05

Order No.: 70P1021
EAN: 4099891674779
MPN:
99 0437 142 05
Series: 713
99 0437 142 05 binder Sensor-Actuator Connectors Image 1
99 0437 142 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.9460 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
15.95 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9460 €
10 pcs.
14.8155 €
50 pcs.
13.7802 €
100 pcs.
12.8163 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable duo connector, 99 0437 142 05, binder

M12-A Male cable duo connector, Contacts: 5, 2 x 2: 1.0-3.0 mm / Ø 4.0-5.0 mm, unshielded, screw clamp, IP67, UL.

Technical specifications
Filter Property Value
Product type plug
Degree of protection (IP) IP67
Orientation straight
Pin number 5 pole
Coding A
Additional parts equipped
Contact connection screw connection
contact surface CuSnZn
Assembly cable assembly
Thread size M12
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin HU
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
