99 0436 684 05 | binder

Jack, M12, 5 pole, screw connection, screw locking, straight, 99 0436 684 05

Order No.: 70P2381
EAN: 4099891677558
MPN:
99 0436 684 05
Series: 713
99 0436 684 05 binder Sensor-Actuator Connectors Image 1
99 0436 684 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.9789 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.98 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9789 €
10 pcs.
21.6104 €
50 pcs.
20.3133 €
100 pcs.
19.0876 €
*incl. VAT plus shipping costs
Subject to prior sale

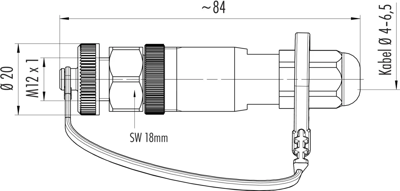

Female cable connector, 99 0436 684 05, binder

M12-A Female cable connector, Contacts: 5, 4.0-6.5 mm, unshielded, screw clamp, IP69K.

Technical specifications
Pin number 5 pole
Type of locking screw locking
Additional parts equipped
Contact connection screw connection
Product type jack
Coding A
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
